Interface 2020

Interface 2020

Lightweight Acoustic Tile,light Range

Interface 2020 plaster acoustic ceiling tile,lights are manufactured from reinforced casting plaster and offer excellent sound absorption, controlled sound transmission and decorative finishes.

The tiles are supplied with an integrated sound absorbent batt inserted during casting and are produced in a range of varying designs. These tiles are pre–painted white.

Interface 2020 Tile,light Features

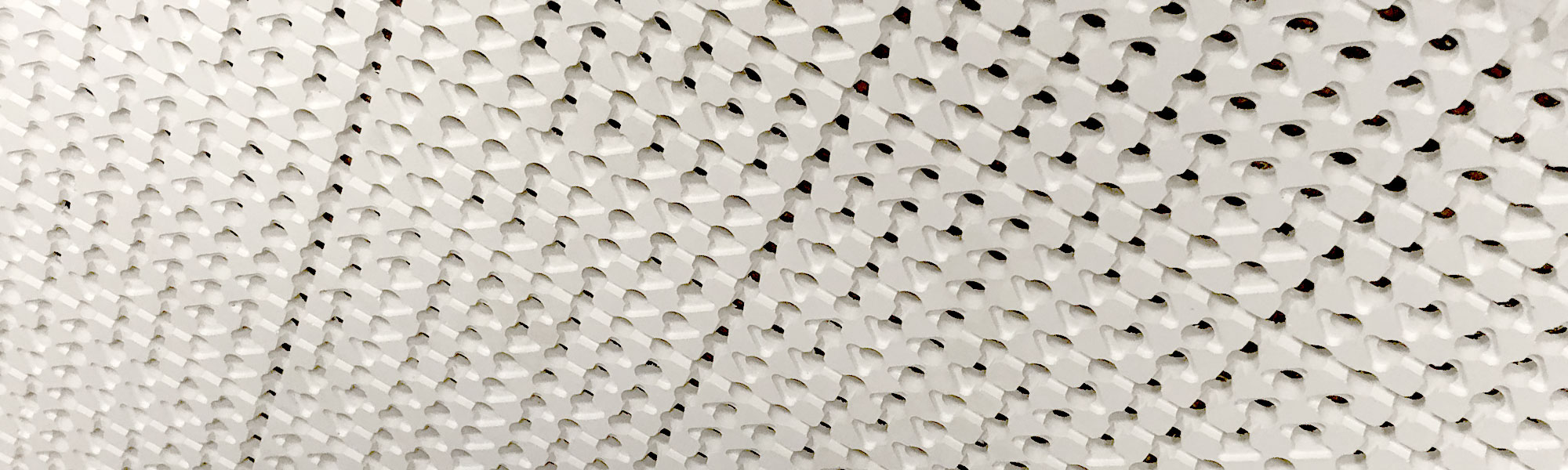

Perforated with a regular pattern of 1225 circular holes (35 x 35 array), of which roughly 1½ lines around the perimeter are not open at the rear and the remainder (approx 32 x 32) opened into the glass fibre batt behind. Hole size was approx 10 mm at the face, tapering to 9 mm at the rear, positioned at approx 16 mm spacing. Decorative effect of perforations was supplemented by additional moulding details - grooves and other sunken features on the perforated face, which is otherwise predominantly flat.

Interface 2020 Tile,light Advantages
  1. Dimensionally stable, will not warp or buckle
  2. Not affected by humidity
  3. Fire resistant
  4. Acoustic properties
  5. Redecoration does not affect the properties
  6. Easy removal and replacement

Interface 2020 Properties

Tile Thickness 30 mm
Size 600mm x 600mm
Open Area 26.7 %
Mass 12.20 kg/m2
Weight per tile 4.45 kg
R Value 0.80
Light Reflective 0.78 %

Acoustic ceiling tiles are supplied underside of tile sealed off with a plaster skim coat as standard. Please contact us for unsealed options.

Interface 2020

Sound Absorption Test Results

AS ISO 354–2006 “Acoustics–Measurement of sound absorption in a reverberation room”
AS ISO 11654–2002 (ISO 11654:1997) “Acoustics–Rating of sound absorption–Materials and systems”

Interface 2020 Results
αw = 0.80
SAA = 0.81
NRC = 0.80
CAC1 = 39
CAC2 = 42

Acoustic Test Results

Insulation Thickness 20 mm
αw 0.80
SAA 0.81
NRC 0.80
CAC1 39
CAC2 42

CAC1 Tile only
CAC2 Added R3.5 insulation batts, 1800 each side of partition to consistently increase acoustic performance by 4dB

Download Reports

Rondo Suspension System

Tile Installation Guide

Duo 1/Duo x 1200 Duo2/600
