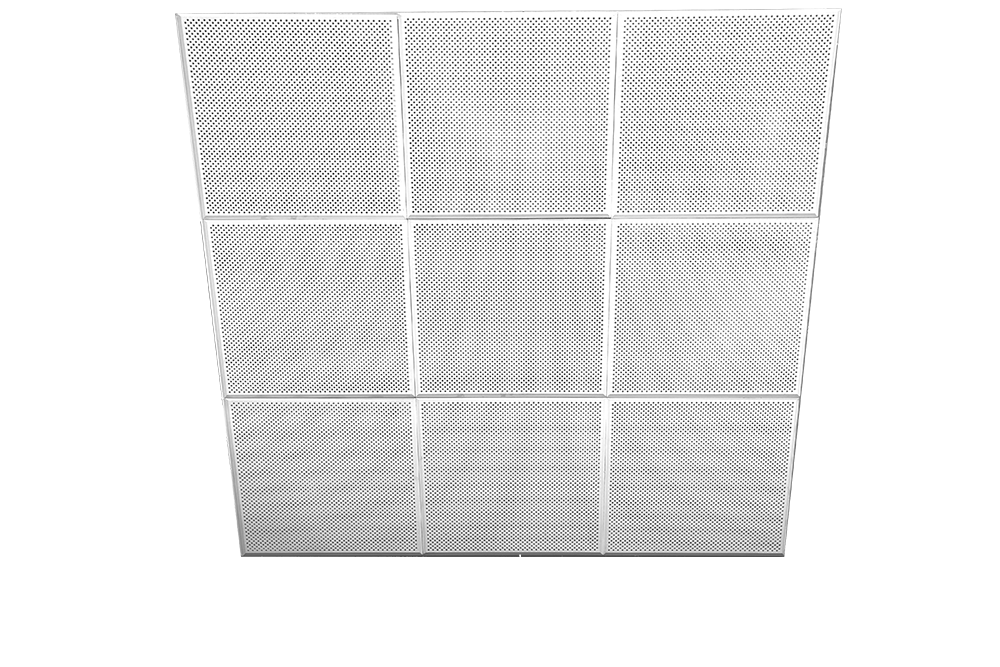

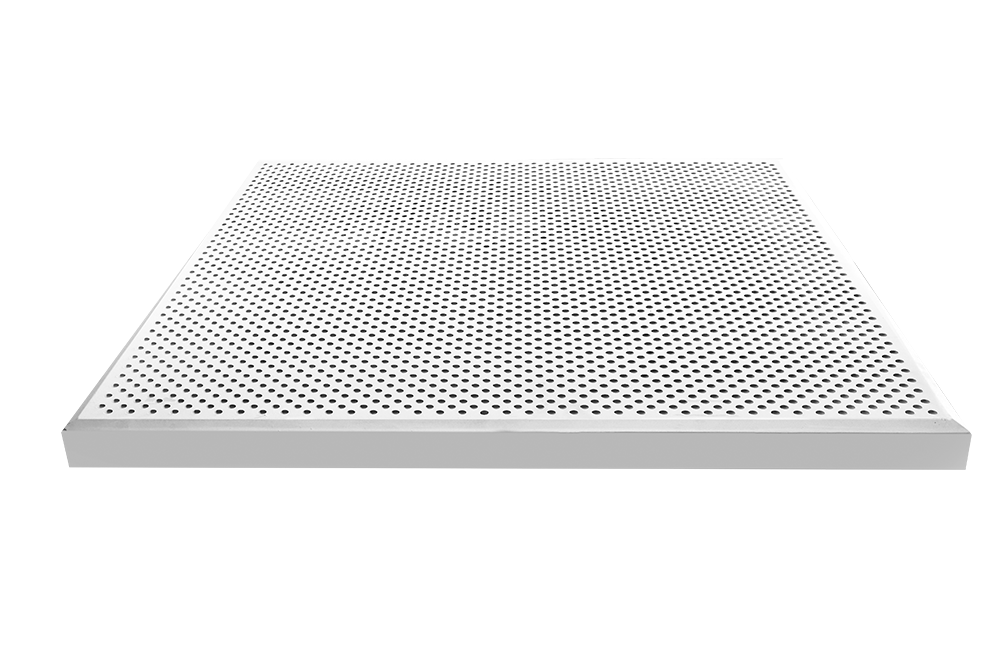

EcoCheck screw up ceiling tilesis a diamond patterned tile These tiles are designed specially for a concealed grid system. Installation is by direct fixing to furring channels.
The tiles are supplied with an integrated sound absorbent batt inserted during casting and are produced in two different patterns.
1. Dimensionally stable will not warp or buckle
2. Not affected by humidity
3. Fire resistant Group 1 rating
4. Acoustic properties
To be used in conjuction with concealed ceiling grid: Rondo Furring Channel No 155 system.
Graph 1: Sound Absorption Coefficients of Bailey Interiors EcoCheck 600mm x 600mm Perforated Plaster with 20mm thick 32kg/m3 Glasswool Substrate Ceiling Tiles tested with a 400mm air gap.
Graph 2: Sound Absorption Coefficients of Bailey Interiors EcoCheck 600mm x 600mm Perforated Plaster Ceiling Tiles with 25mm thick @ 32kg/m3 Glasswool installed to the underside of the tile sealed with a plaster skim coat tested with a 400mm air gap.
Graph 3: Sound Absorbtion, with polyester sound absorbing batt insert
Graph 4: glasswool insulation @ 32 kg/m3; compressed to 20mm Thin plaster skim coat over insulation to seal tile Sides of tile, screw fixed to furring channels
CAC increase by 4dB if R3.5 insulation batts are added, 1800 each side of partition.
Tile Name: EcoCheck Screw Up
Collection: Plaster Acoustic Tile (Screw Up)
Thickness (mm): 30
Size(mm): 600 x 600
% Open Area: 22.7
R Value: 0.80
% light reflective: 0.76
Mass (Kg/sqm): 12.50
Edge Finish: V-Edged
Fixing: Concealed
Fiberglass insulation batt:
32Kg/cu.m, 20mm thick Glasswool/Polyester
Group 1 Classification
CAC: 42a / 46b
NRC: 0.80¹ / 0.70²
CAC: 43a / 47b
NRC: 0.70²
Notes:
a Tile only
b Added R3.5 insulation batts, 1800 each side of partition to consistently increase acoustic performance by 4dB
¹Underside of tile exposed *
²Underside of tile sealed with plaster skim coat
* Acoustic ceiling tiles are supplied underside of tile sealed off with a plaster skim coat as standard. Please contact us for unsealed options.
