New York Acoustic Panel Range

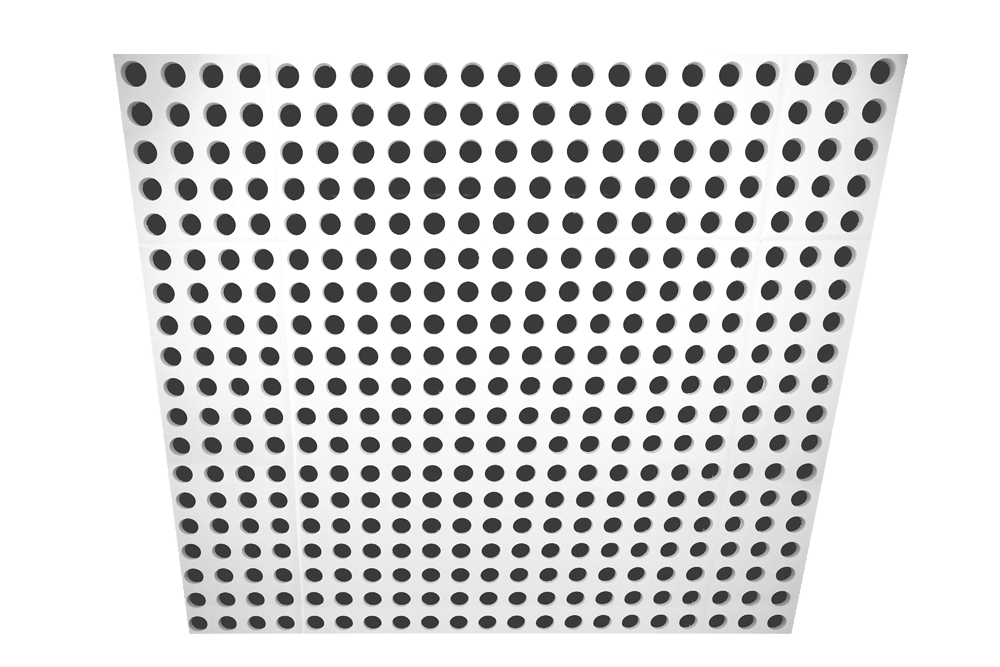

Cell Air plaster acoustic ceiling panels are manufactured from reinforced casting plaster and offer excellent sound absorption, controlled sound transmission and decorative finishes.

The panels are essentially perforated cast plaster ceiling sheets that are also suitable for installation as a feature wall as well as ceilings.

Panel Features

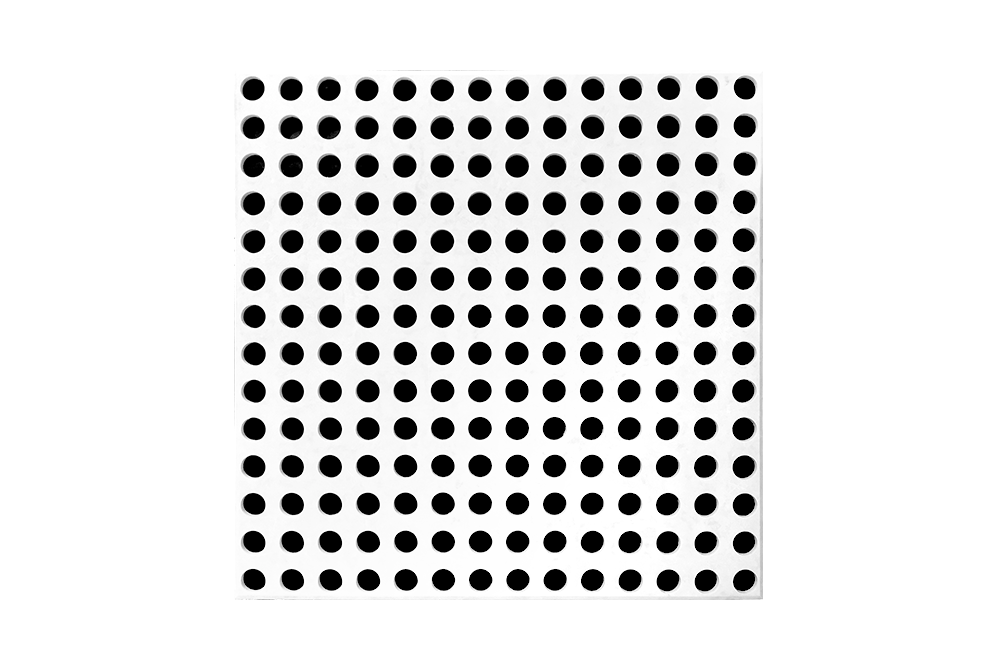

V-Edged panel, perforated with a set of 14 x 14 circular holes, 55 mm opening at the mouth, tapering to 53 mm at the rear; holes at 86 mm centres, open area percentage 30.0% based on 53 mm throat opening.

  1. Full acoustic perforations
  2. Simple installation screw fix to steel or timber battens
  3. Flush jointing
  4. Precise lines
  5. Three unique and innovative designs
Panel Benefits
  • High sound absorption
  • Reduces noise reverberation
  • Unique and innovative designs which can only be achieved with cast plaster
  • Prevents dust entering into room space
  • Reduces echo
  • Able to help to distinguish between music and speech

Cell Air Properties

Tile Thickness 15 mm
Size 1200mm x 1200mm
Open Area 31.8 %
Mass 12.50 kg/m2
Weight per tile 18 kg

Acoustic ceiling tiles are supplied underside of tile sealed off with a plaster skim coat as standard. Please contact us for unsealed options.

Cell Air

Sound Absorption Test Results

AS ISO 354–2006 “Acoustics–Measurement of sound absorption in a reverberation room”
AS ISO 11654–2002 (ISO 11654:1997) “Acoustics–Rating of sound absorption–Materials and systems”

Cell Air Results
αw = 0.70
SAA = 0.84
NRC = 0.85

For 50mm Glasswool insulation, 400mm Air Gap

(50mm insulation)

αw = 0.75
SAA = 0.93
NRC = 0.95

For 50mm Glasswool insulation, 50mm Air Gap

αw = 0.65
NRC = 0.95

Acoustic Test Results

Insulation Thickness 20 mm
αw 0.70
SAA 0.84
NRC 0.85
Insulation Thickness 50 mm
αw2 0.75
SAA2 0.93
NRC2 0.95

Download Reports

Rondo Suspension System

Installation Guide

Furring channel 28mm thick Steel Stud (walls) 64, 76, 92 wide
