Lightweight Collection Plaster Ceiling Acoustic Tiles

Ultimate Lightweight Collection

Download Brochure

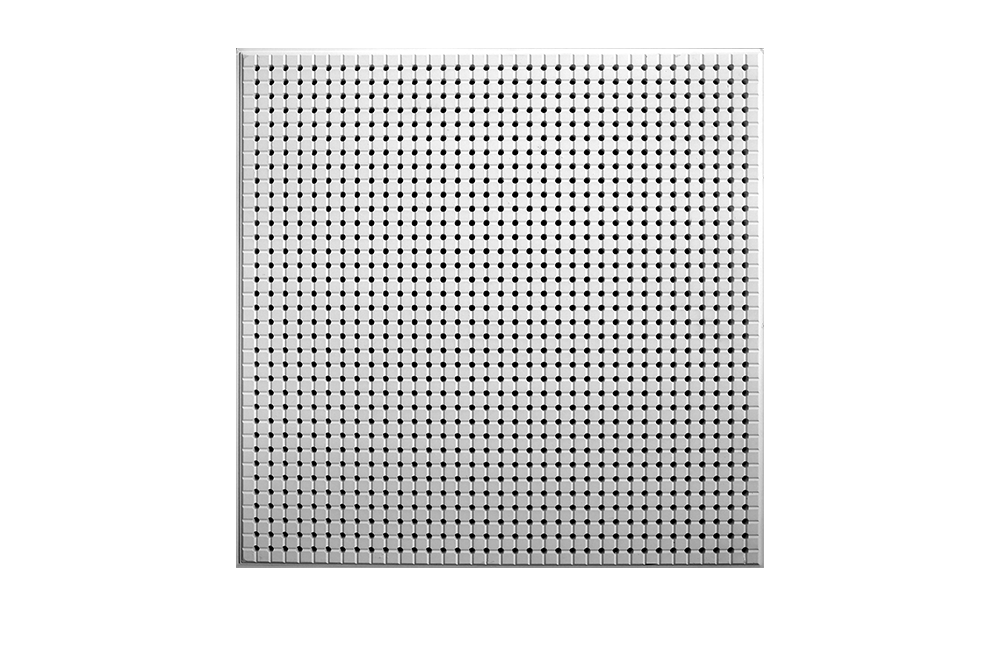

Ultimate Lightweight Collection - Acoustic Ceiling Tiles

Specially designed for an exposed, suspended grid ceiling system, these tiles offer high acoustic performance. These acoustic ceiling tiles are manufactured from reinforced casting plaster and offer excellent sound absorption and controlled sound transmission properties.

General Properties

The tiles are supplied with an integrated sound absorbent batt inserted during casting and are produced in a range of 5 distinct designs. These tiles measure 30mm thick, 600 x 600mm with a 20mm thick sound absorbent batt giving a high NRC and CAC value which equates to high acoustic performance.


Tile Thickness 30 mm
Size 600mm x 600mm
Open Area 21.3 %
Mass 12.20 kg/m2
Weight per tile 4.45 kg
R Value 0.80
Light Reflective 0.80 %
20 mm Insulation
αw = 0.70
SAA = 0.78
NRC = 0.80
CAC1 = 35
CAC2 = 38

Tile Thickness 30 mm
Size 600mm x 600mm
Open Area 26.7 %
Mass 12.20 kg/m2
Weight per tile 4.45 kg
R Value 0.80
Light Reflective 0.78 %
20 mm Insulation
αw = 0.80
SAA = 0.81
NRC = 0.80
CAC1 = 39
CAC2 = 42

Tile Thickness 30 mm
Size 600mm x 600mm
Open Area 19.8 %
Mass 12.20 kg/m2
Weight per tile 4.45 kg
R Value 0.80
Light Reflective 0.80 %
20 mm Insulation
αw = 0.75
SAA = 0.81
NRC = 0.80
CAC1 = 38
CAC2 = 41

Tile Thickness 30 mm
Size 600mm x 600mm
Open Area 10.1 %
Mass 12.20 kg/m2
Weight per tile 4.45 kg
R Value 0.80
Light Reflective 0.80 %
20 mm Insulation
αw = 0.50
SAA = 0.72
NRC = 0.75
CAC1 = 32
CAC2 = 35
