Ceil Sound

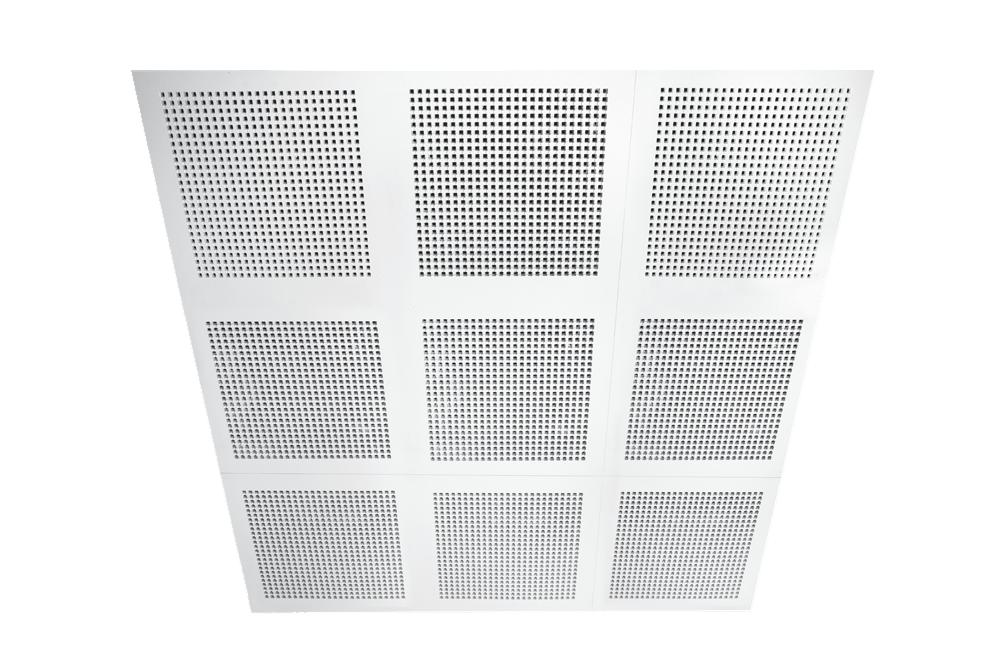

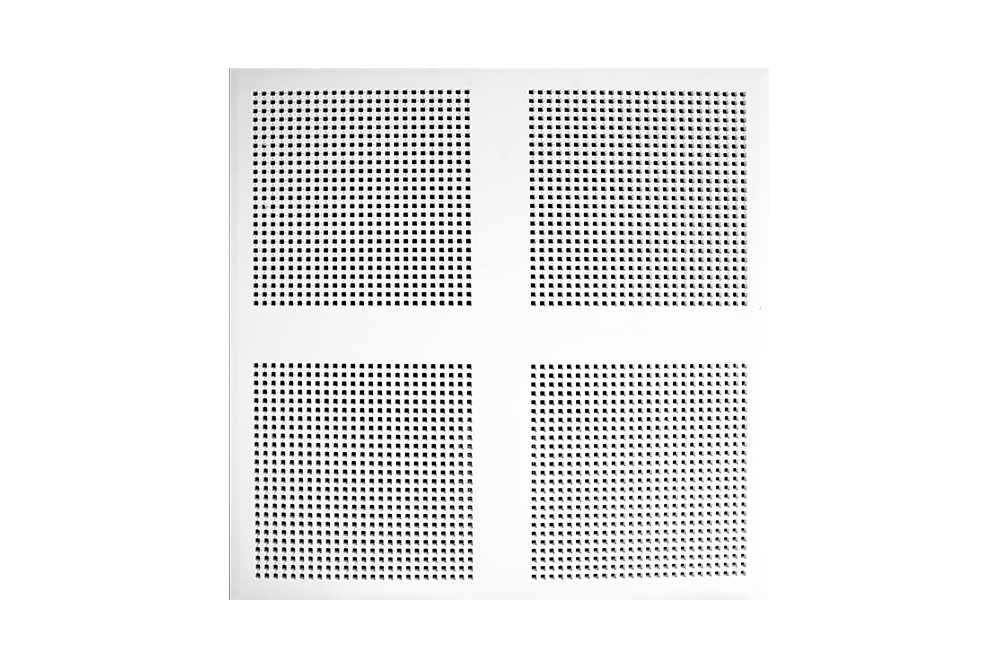

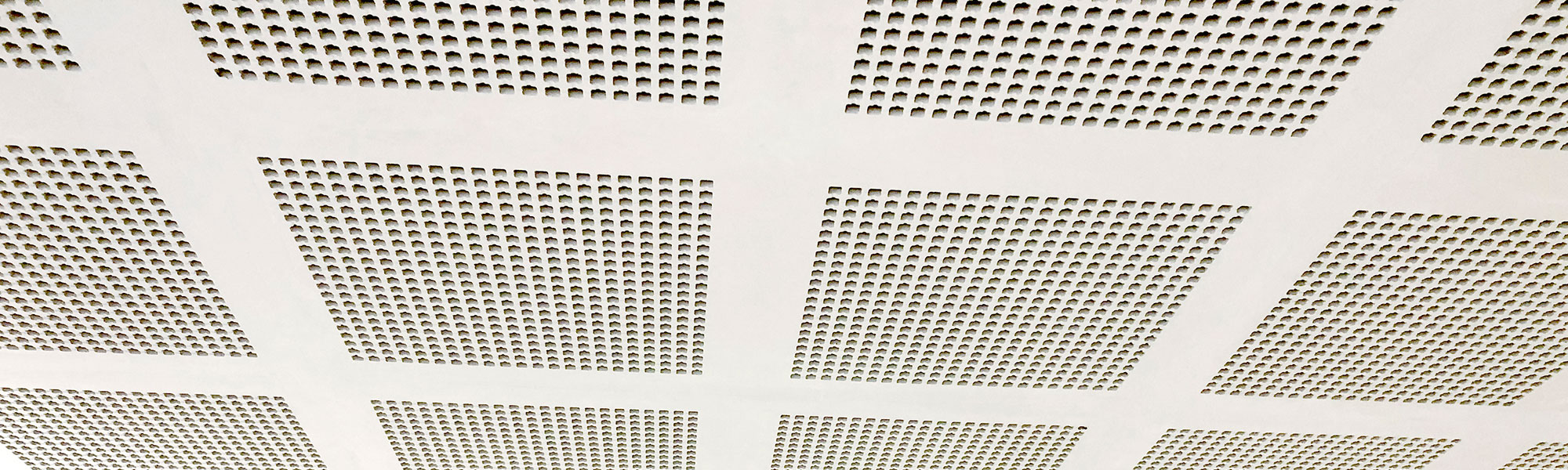

Ceil Sound plan view Ceil Sound ceiling view

Ceil Sound

New York Acoustic Panel Range

Ceil Sound plaster acoustic ceiling panels are manufactured from reinforced casting plaster and offer excellent sound absorption, controlled sound transmission and decorative finishes.

The panels are essentially perforated cast plaster ceiling sheets that are also suitable for installation as a feature wall as well as ceilings.

Panel Features

14mm square hole perforated cast plaster with a half round intesecting indent into each square. Pattern is arranged in a grid of 4 per panel. Perimeter band 65mm

  1. Full acoustic perforations
  2. Simple installation screw fix to steel or timber battens
  3. Flush jointing
  4. Precise lines
  5. Three unique and innovative designs
Panel Benefits
  • High sound absorption
  • Reduces noise reverberation
  • Unique and innovative designs which can only be achieved with cast plaster
  • Prevents dust entering into room space
  • Reduces echo
  • Able to help to distinguish between music and speech

Ceil Sound Properties

Tile Thickness 13 mm
Size 1200mm x 1200mm
Open Area 27.2 %
Mass 11.00 kg/m2
Weight per tile 15.50 kg

Acoustic ceiling tiles are supplied underside of tile sealed off with a plaster skim coat as standard. Please contact us for unsealed options.

Ceil Sound

Sound Absorption Test Results

AS ISO 354–2006 “Acoustics–Measurement of sound absorption in a reverberation room”
AS ISO 11654–2002 (ISO 11654:1997) “Acoustics–Rating of sound absorption–Materials and systems”

Ceil Sound Results
αw = 0.75
SAA = 0.79
NRC = 0.80

For 20mm Glasswool insulation, 200mm Air Gap

For 50mm Glasswool insulation, 200mm Air Gap

αw = 0.80
SAA = 0.88
NRC = 0.90

For 50mm Glasswool insulation, 50mm Air Gap

αw = 0.60
NRC = 0.90

Acoustic Test Results

Insulation Thickness 20 mm
αw 0.75
SAA 0.79
NRC 0.80
Insulation Thickness 50
αw2 0.80
SAA2 0.88
NRC2 0.90

Download Reports

20mm insulation, 200mm air gap, AC277-15-1 CSIRO Acoustics Testing Laboratory
50mm insulation, 200mm air gap, AC277-27-1 CSIRO Acoustics Testing Laboratory
50mm insulation, 50mm air gap, 13-093/PD RMIT Applied Acoustic Laboratory

Rondo Suspension System

Installation Guide

Furring channel 28mm thick Steel Stud (walls) 64, 76, 92 wide
