Shadex

Shadex

Lightweight Acoustic light,Tile Range

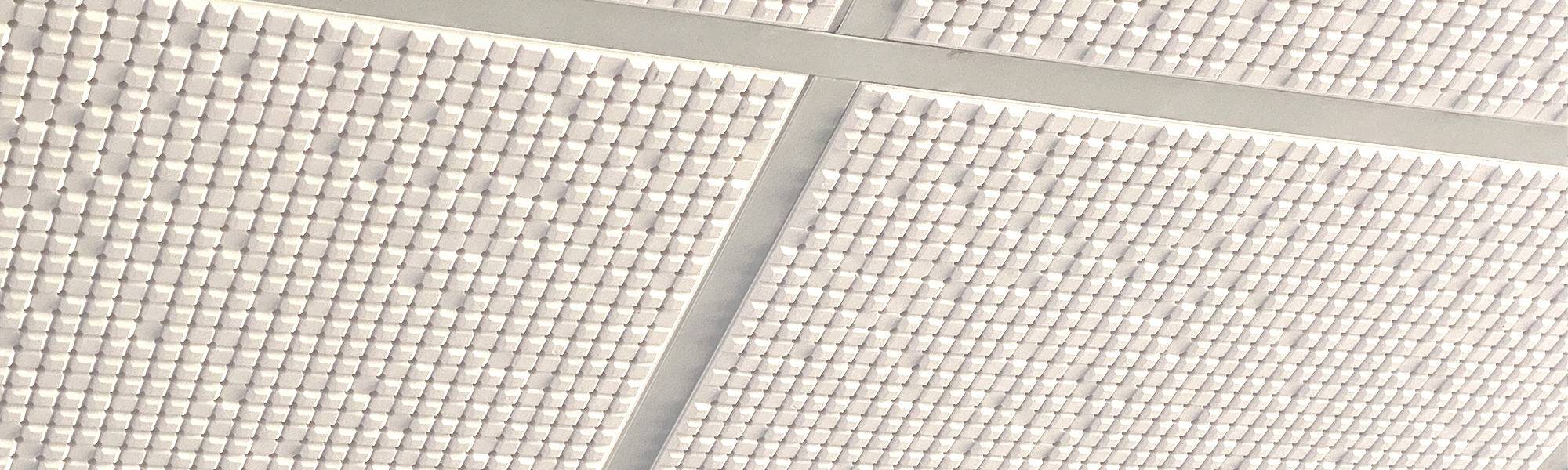

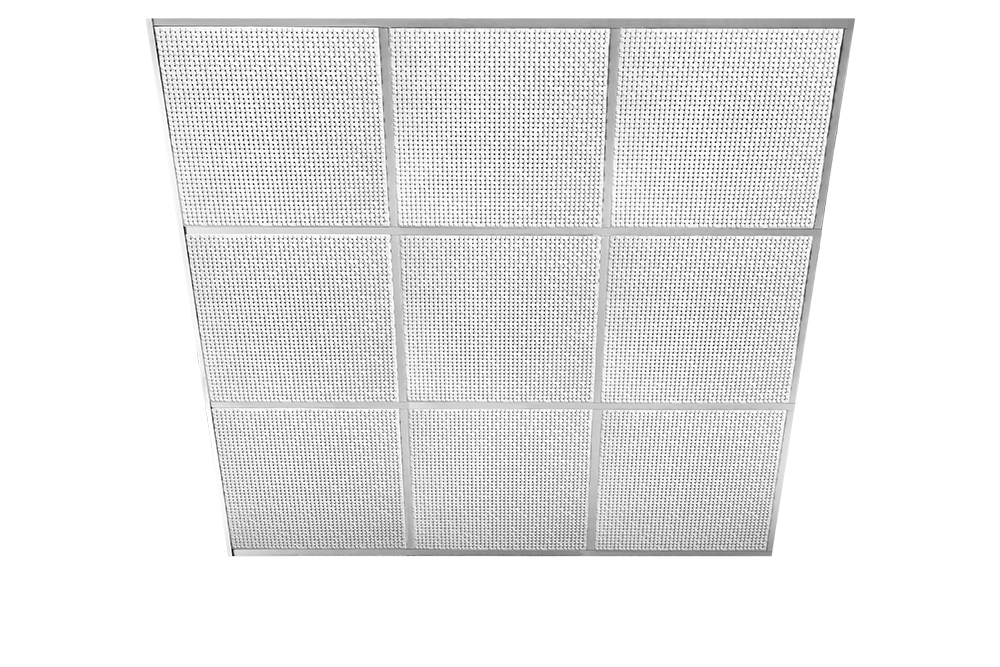

Shadex plaster acoustic ceiling light,tiles are manufactured from reinforced casting plaster and offer excellent sound absorption, controlled sound transmission and decorative finishes.

The tiles are supplied with an integrated sound absorbent batt inserted during casting and are produced in a range of varying designs. These tiles are pre–painted white.

Shadex light,Tile Features

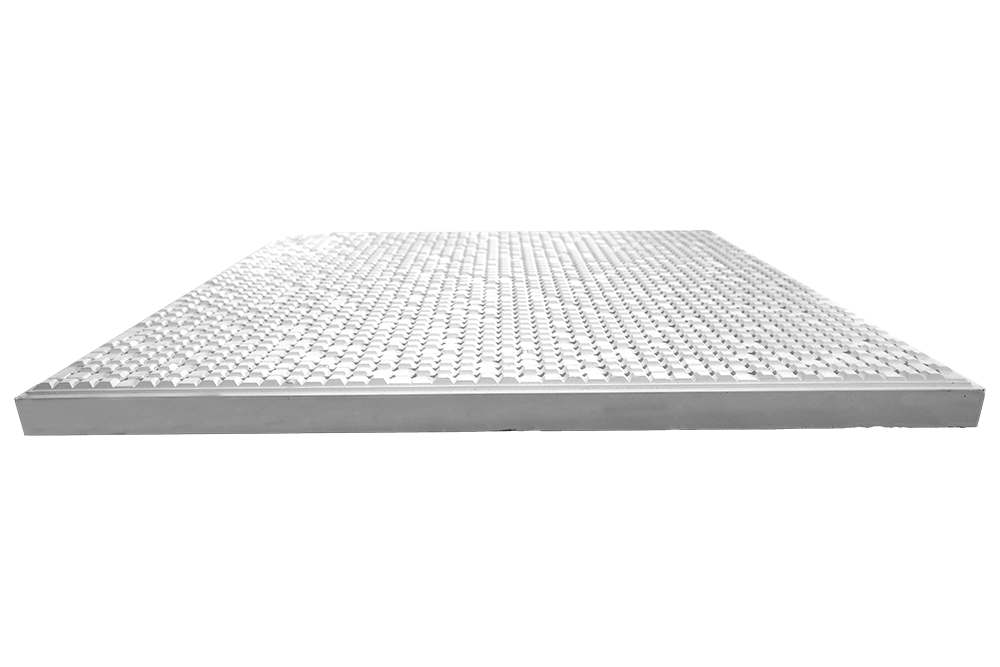

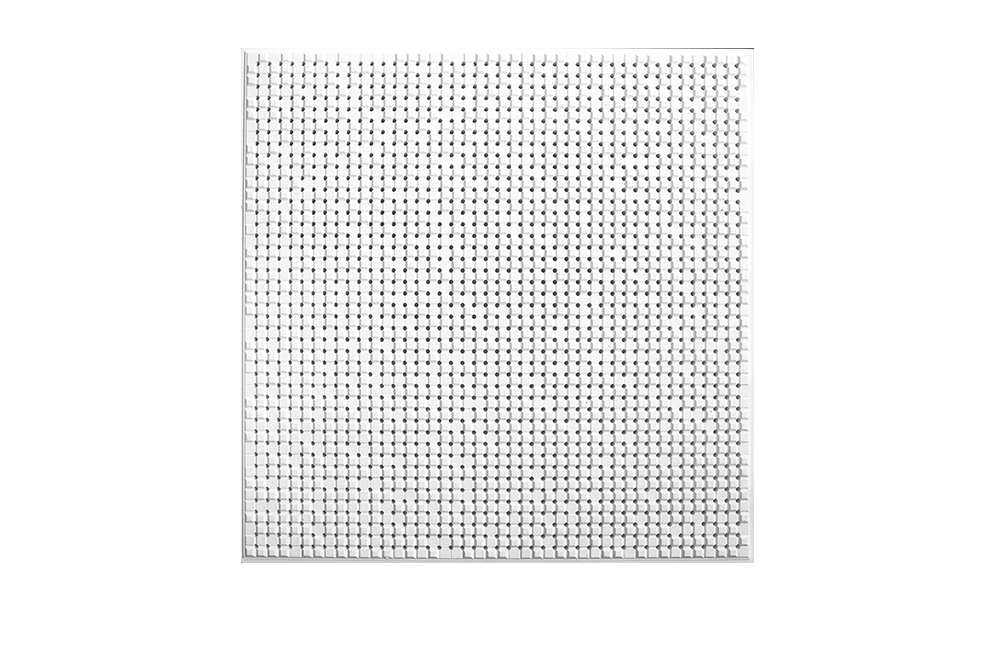

Perforated in a regular pattern of 7mm circular holes at the face, tapering to 6.5mm at the rear at 13mm spacing

Shadex light,Tile Advantages
  1. Dimensionally stable, will not warp or buckle
  2. Not affected by humidity
  3. Fire resistant
  4. Acoustic properties
  5. Redecoration does not affect the properties
  6. Easy removal and replacement

Shadex Properties

Tile Thickness 30 mm
Size 600mm x 600mm
Open Area 10.1 %
Mass 12.20 kg/m2
Weight per tile 4.45 kg
R Value 0.80
Light Reflective 0.80 %

Acoustic ceiling tiles are supplied underside of tile sealed off with a plaster skim coat as standard. Please contact us for unsealed options.

Shadex

Sound Absorption Test Results

AS ISO 354–2006 “Acoustics–Measurement of sound absorption in a reverberation room”
AS ISO 11654–2002 (ISO 11654:1997) “Acoustics–Rating of sound absorption–Materials and systems”

Shadex Results
αw = 0.50
SAA = 0.72
NRC = 0.75
CAC1 = 32
CAC2 = 35

Acoustic Test Results

Insulation Thickness 20 mm
αw 0.50
SAA 0.72
NRC 0.75
CAC1 32
CAC2 35

CAC1 Tile only
CAC2 Added R3.5 insulation batts, 1800 each side of partition to consistently increase acoustic performance by 4dB

Download Reports

Rondo Suspension System

Tile Installation Guide

Duo 1/Duo x 1200 Duo2/600
